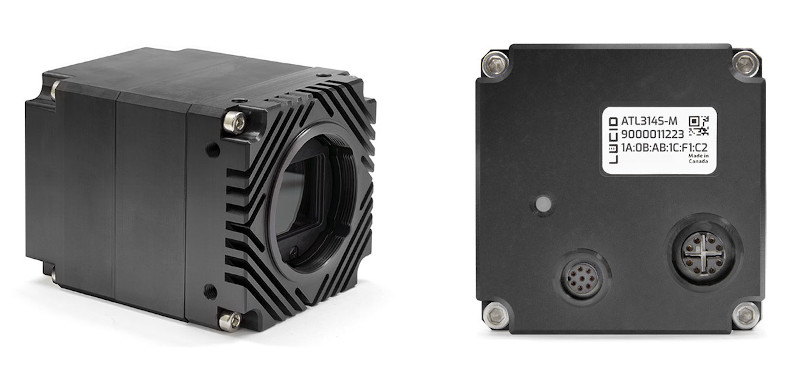

Camera Lucid Atlas ATL050S-C
Benefits of 5GBase-T

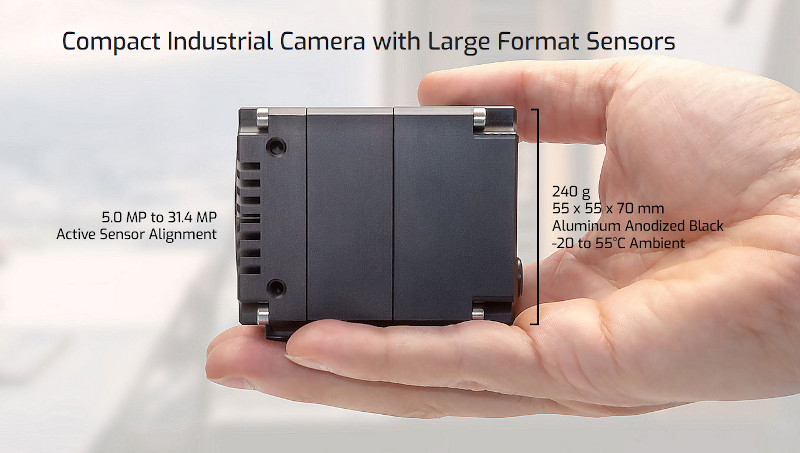

The Atlas industrial camera is designed for imaging applications requiring high bandwidth in a compact size. The 5Gbase-T (5GigE) Ethernet interface is 5 times faster than Gigabit Ethernet, 50% faster than USB3.1 Gen1 and works with up to 100m of regular copper Ethernet cable. Atlas supports Power over Ethernet (PoE) that simplifies integration and reduces cost. And, despite its compact size, Atlas supports large format APS-C image sensors without the need for large heatsinks or fans. The 5GigE Atlas hits the sweet spot of faster frame rates, small size and excellent price-performance.

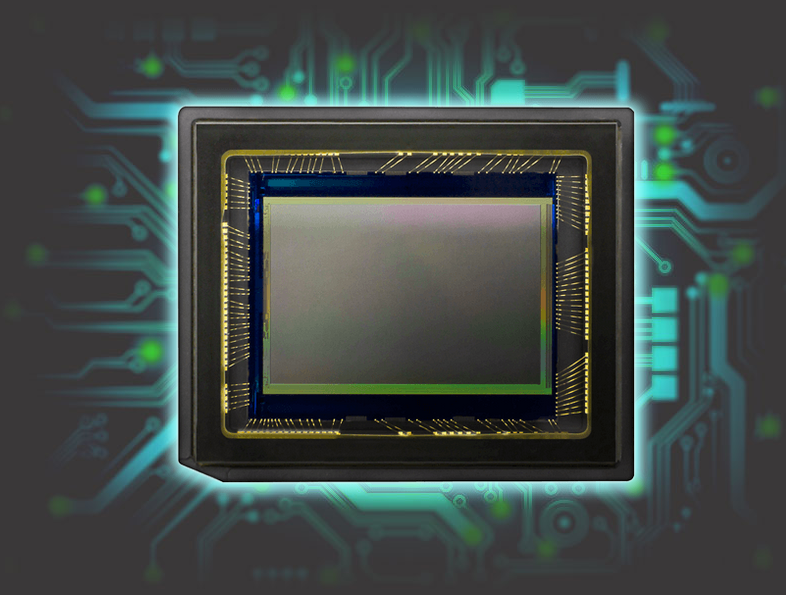

High Resolution Pregius Sensors
Get the clearest and sharpest images with the newest generation of high resolution Sony sensors.

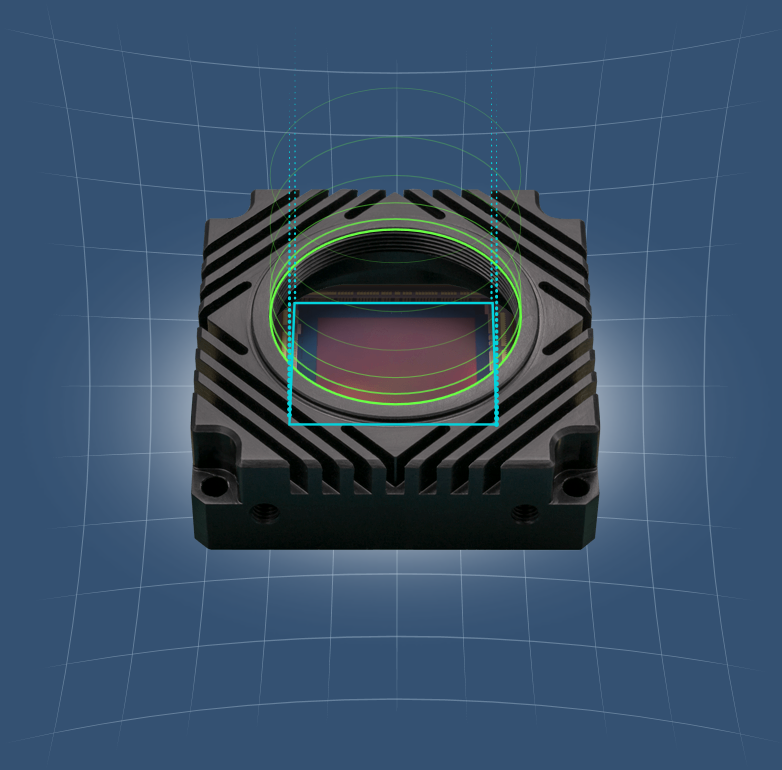

Active Sensor Alignment
With larger sensors, minor discrepancies in sensor tilt and rotation can have a negative impact on imaging. That is why all Atlas cameras are actively aligned to minimize sensor tilt and rotation, and to place the center of the image sensor at the lens optical axis. The result is a precisely attached large format sensor that is aligned to the lens mount so that images are sharp and crisp, even in the corners. Learn more about our Active Sensor Alignment process in Lucid tech brief.
Stream 600 MB/s Over CAT5e / CAT6 Cables
Boost your application with NBASE-T technology
5Gbps - 5x GigE Vision Speeds with Power over Ethernet (PoE)
Power over Ethernet (PoE) allows both data and power over one M12 Ethernet cable, this adds
value by reducing the number of cables needed and minimizing future maintenance.

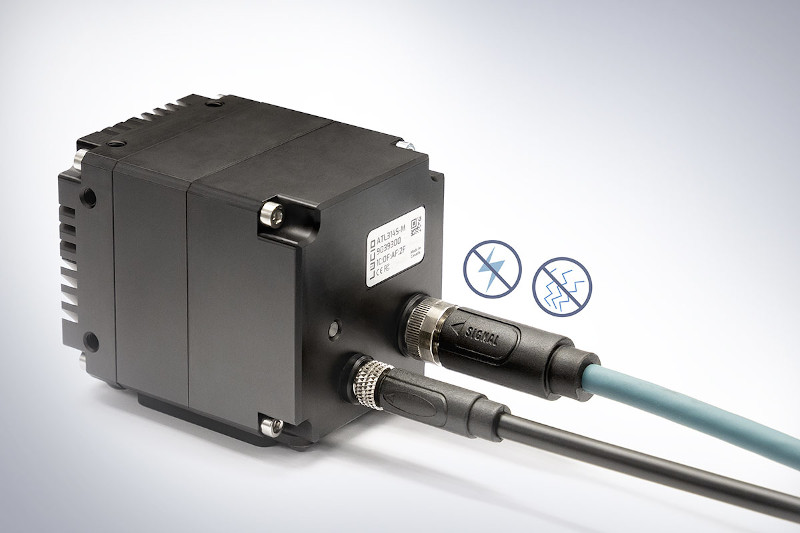

M12 and M8 Connectors
The M12 Ethernet and M8 GPIO connectors are designed to withstand the demands of an industrial environment. The M12 Ethernet connector is standardized as IEC 61076-2-109 and is included in the GigE Vision standard. Its rugged design allows for resistance against strong vibration and protection against electrical interference. The secure 8 pin M8 GPIO connector is standardized to IEC 61076-2-104 with an opto-coupled input line, an opto-coupled output line, and two bidirectional lines. M12 Ethernet and M8 GPIO connections are the superior choice for demanding applications such as industrial, automotive, agriculture, process control, food and beverage, and medical applications.
The Perfect Fit

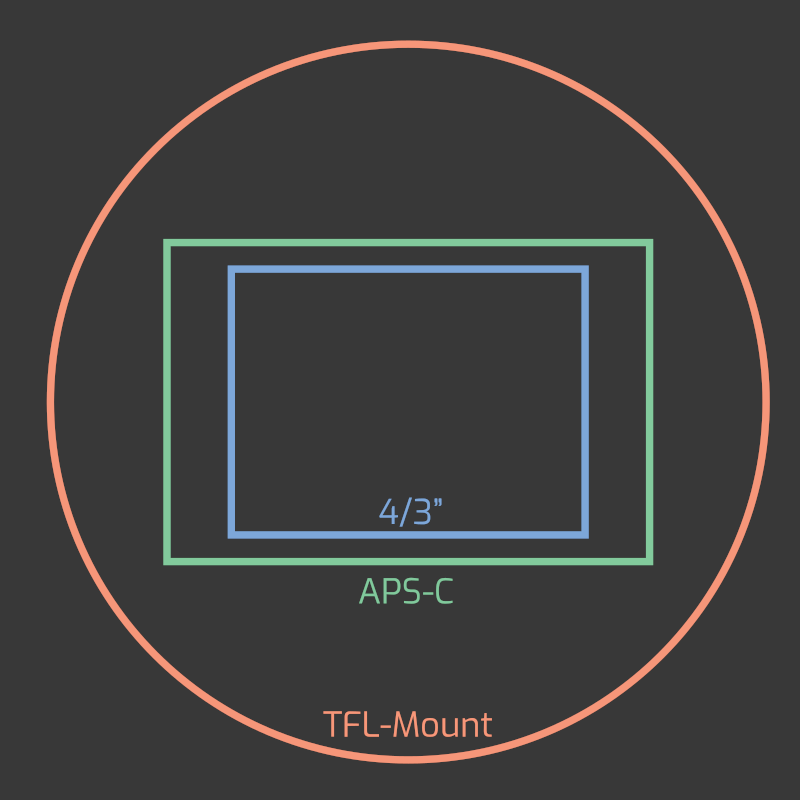

TFL-Mount - JIIA Lens Standard Built for Large Format Sensors

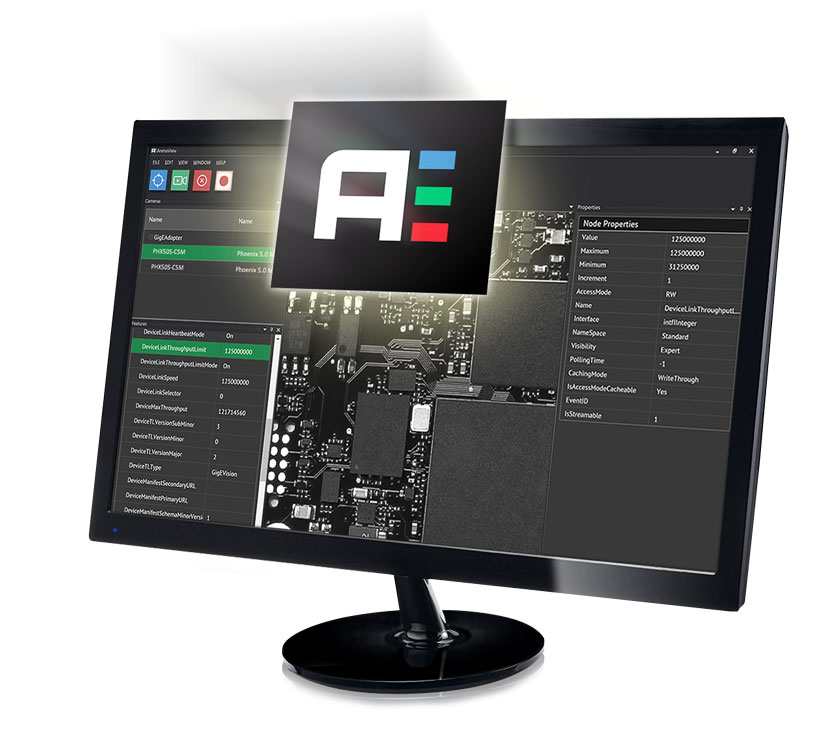

Welcome to our powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the high resolution Atlas camera. It works fast with less functions calls and is simpler to use thanks to its modern GUI based on the GenICam standard.
